1, the latest generation of Faroudja ® Real Color ® true Color image processing, 10 + Bit Faroudja ® DCDI to interlaced video processing, Faroudja ® TureLife ™ video image enhancement
2, seamless switch switch, fades, fusion
3, two kinds of switching signal source: one key switch and primary + Take
4, three types of custom double-picture mode, a key switch between, Any picture In picture (PIP/PBP) showed that AIAO (Any) In Any Out) function, Any interception of Any output
5, hot backup group input signal function and ensure the output is more stable and reliable
6, custom DVI input EDID, perfect to realize point-to-point display
7, customize the output resolution, single pixel level up to 3840, vertical pixels of up to 1920,
8, DVI Loop support apple PC, DVI infinite Loop cascade synchronization, drive the infinite lattice LED screen.Frame synchronization technology, no dislocation and latency between output image
9, a variety of control mode: the wireless wifi, IP, infrared remote control, PC/LAN, panel key software, convenient operation
Stereo audio converter is configurable, 10, 2 road with HDMI and SDI audio audio, a total of 4 road synchronous switch
11, can be built-in 2 LED to send card compatible (calories)
12, 24/7 application, high reliability and stability
13,Compatible with all of full-color synchronous control system on the market
Characteristic one: the fading

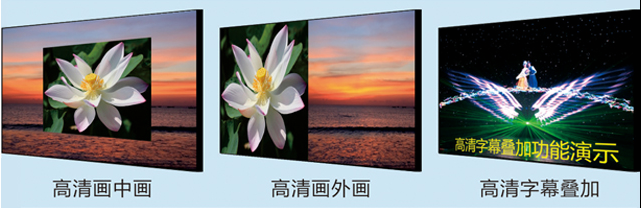

Characteristics of the two: picture in picture, painting outside, subtitle overlay


System application

Especially suitable for leasing center, large stage performances, television studio theatre, conference, show the large screen display occasions such as exhibition.

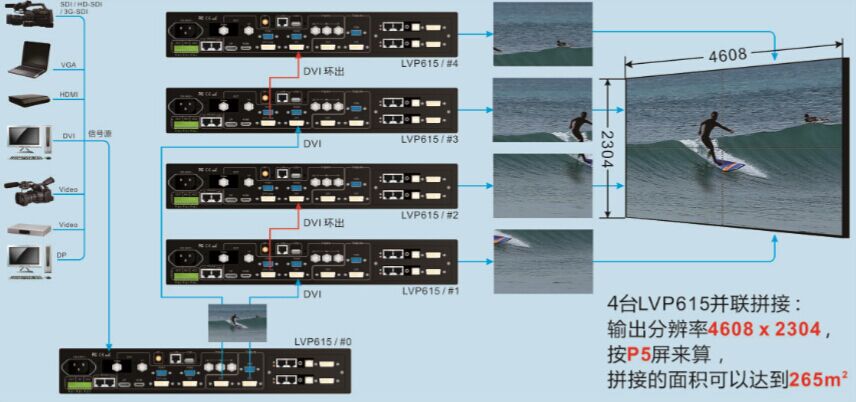

Synchronous splicing example: multimachine cascade

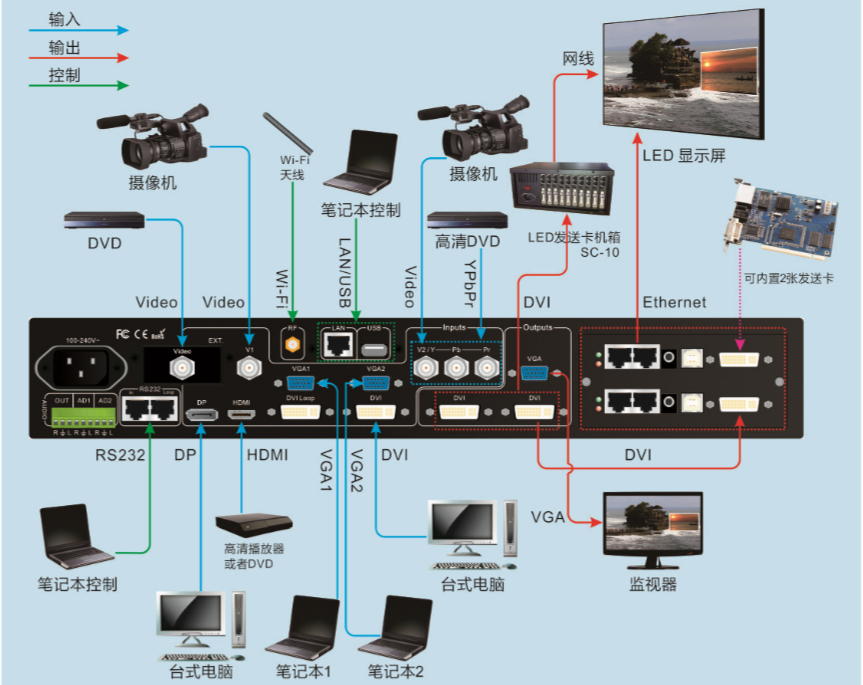

LVP615 wiring diagram


Technical specifications

The input signal
type/The number of	2xVideo 1 xYPbPr 2xVGA（VESA） 1 xDP（VESA） 1×DVI（VESA） 1 xHDMI（VESA/CEA-861） 1 xEXT.(extended interfaceVideo/DVI-I/SDI）
Video formats	PAL/NTSC
Composite video by impedance	1V（p_p）/ 75 omega.
YPbPrformat	SD/HD（CEA -861）
YPbPrAmplitude of the impedance	Y= 1.0V（p_p）/ 75 omega. Pb= 0.35V（p_p）/ 75 omega. Pr= 0.35V（p_p）/ 75 omega.
VGAformat	PC（VESA）	Or less2048x1152 _60Hz
VGAAmplitude of the impedance	R、G、B = 0.7 V（p_p）/ 75 omega.
DPformat	DisplayPort1.1（VESA）
DVIformat	PC（VESA）	Or less2304x1152_60Hz
HDMIformat （HDCP1.3）	PC（VESA）	Or less2304x1152_60Hz
	HDMI1.3（CEA -861）	Or less1920x1080p_60Hz
SDIformat	SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M	480i_60Hz 576i_50Hz 720p、1080i、1080p
audio	2.0Vp-p/10K?
The input terminals	Video：BNC YPbPr：BNCX 3 VGA：15pin D_Sub(The female) DP：DisplayPort SMTThe mother city 20pin DVI：24+1 DVI_D HDMI：HDMIterminalAclass SDI ：BNC
The output signal
type/The number of	1 xVGA（RGBHV） 2×DVI
VGA/DVIThe resolution of the	1024 x 768_60Hz/75Hz 1080x1920_60 Hz 1200x1600_60 Hz 1280 x 1024_60Hz/75Hz 1366x768 _60Hz 1440 x900 _60Hz 1536x1536_60 Hz 1600 x 1200_60Hz 1920×1080p_50Hz/60Hz 1920x1200 _60 Hz 2048x1152 _60Hz 2304x1152 _60Hz 2560x816 _60Hz Custom output resolution (highest level pixels3840, the vertical pixels to the highest1920）
VGAThe output amplitude	R、G、B = 0.7 V（p_p）/ 75 omega.
The output terminals	VGA OUT：15pin D_Sub(The female) DVI OUT1：24 +1 DVI_D DVI OUT2：24 +1 DVI_D
other
fuckcontrolway	wirelesswifi、IP/LAN, panel button, infrared remote control,PCsoftware
The input voltage	100-240VAC 50/60Hz
The whole machine's biggestPower consumption	Or less20W
The environment temperature	5-40 ℃
Environmental humidity	15-85%
Size (packaging)	145mm（high）x370mm（wide）x535mm（long）
The weight of the	Gross weight: 5.6 Kg, Net weight: 4.2 Kg
