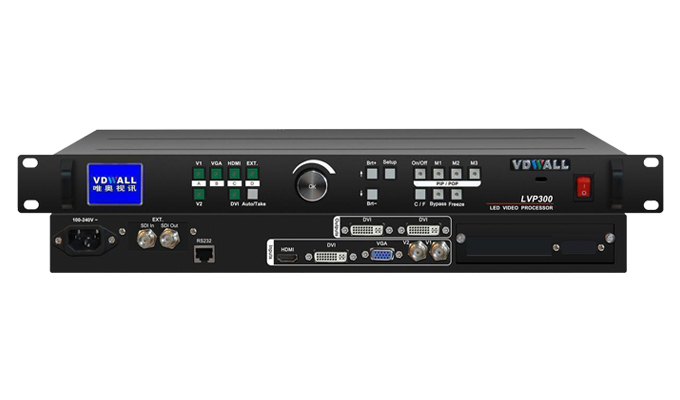

LVP300 LED hd video processor_SHENZHEN YUYI PHOTOELECTRON

2. The three types of custom double-picture mode, a key switch between, any picture in picture (PIP/PBP) display
4. The two switching signal source: a key switch and primary + Take
6. A variety of control methods: panel buttons, PC software, convenient operation
8.24/7 applications, high reliability and stability

System application
Lease show, TV concert hall, theatre, large stage large conference, show the large screen display occasions such as exhibition.
LVP300 wiring diagram

Technical specifications

The number/type			1×VGA（RGBHV） 1×HDMI（VESA/CEA-861） Video formats	Composite video by impedance	VGA format	≤1920×1080_60Hz
R, G, B = 0.7 V (p_p) / 75 omega
PC (VESA standard)	HDMI formats	≤1920×1080_60Hz
USB format	MKV/TS/M2TS/TP/TRP/AVI/WMV/RM/RMVB/ Multimedia video coding format	MPEG-2 HD、MPEG-1、MPEG-4、Xvid
JPG, PNG, BMP, maximum 15 million pixels
SMPTE259M-C SMPTE 274M/296M 480i_60Hz 720p、1080i、1080p
Video：BNC DVI：24+1 DVI_D SDI：BNC/75
The number/type	DVI format		1280×1024_60Hz/75Hz 1920×1080p_50Hz/60Hz 1440×900_60Hz The output terminals	other
RS232
100-240VAC 50/60Hz
≤25W
0-45Environmental humidity	size		The weight of the	The standard accessories	DVI cable 0.5 m x 1, 1.5 x 1 m a serial port turn so line Optional accessories	< span style = "the font-family:" Microsoft = "" yahei";= "" font - size: 14 px =" ";"= "" line - height: 125%;The font - size: 14 px;"* 1 = "" > send CARDS
