1. The latest generation of broadcast video processing technology, setVideo stitching machine / Hybrid video matrix / Split-screen processor / Processors video synchronizationFunction as a whole

2. Input:hd+ Standard definition，simulation+digital, as many as 28 road, among them: CVBS x 7, VGA, DVI/HDMI x 7, 7 x

SDI / HD-SDI / 3G-SDI x 7

3. Output: DVI digital high-definition, as many as 16, 1920 x 1080 @ 60 hz

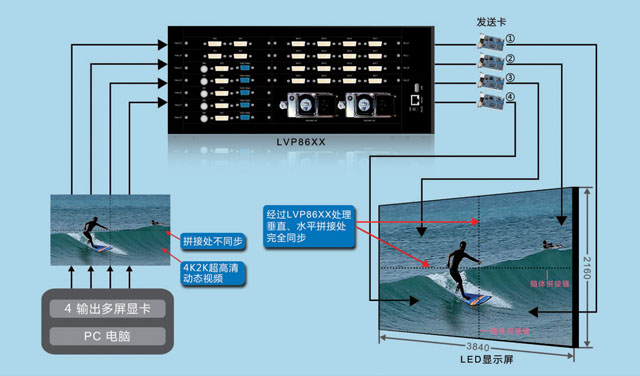

4. The synchronousSplicing technologyTo realizeMore screen graphicsorConnected to the playerThe ultra-high dynamic videoThe level ofandverticalSynchronous processing

5. SupportEnlarge stitching，Point-to-point synchronous splicingThe level of single biggest splicing 30720 points or vertical line 19200

6. One to 10Pre inspect pictureHd output

7. 4K2K Ultra clear dynamic reproduction

8. SingleFour images showed，reproduction +Any three images across the screen roamingAccording to

9. Any input signalSeamless switching、Fades to switch

10. A variety ofPre-existing patternsCall, call special effects modelseamlessorThe fading

11. AIAO (Any) In Any Out function, Any interception of Any output

12. The card design, flexible and convenient;Redundant power supply design more reliable operation

13. Convenient console/RS232 / USB control Settings

14.Compatible with all of full-color synchronous control system on the market

Features: synchronization splicing technology

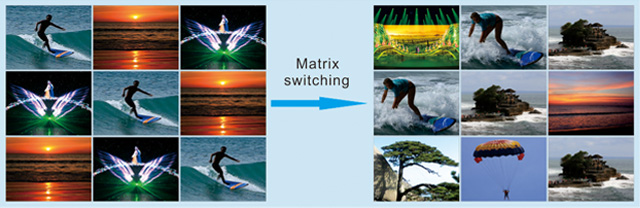

Character 2: many pieces of LED display matrix switching

Feature 3:4 k2k ultra hd + any reproduction across the screen roaming three pictures showed

Especially suitable for leasing center, large stage performances, television studio theatre, conference, display exhibition, and other large screen, LED display,

Hybrid LED display and other large display applications.

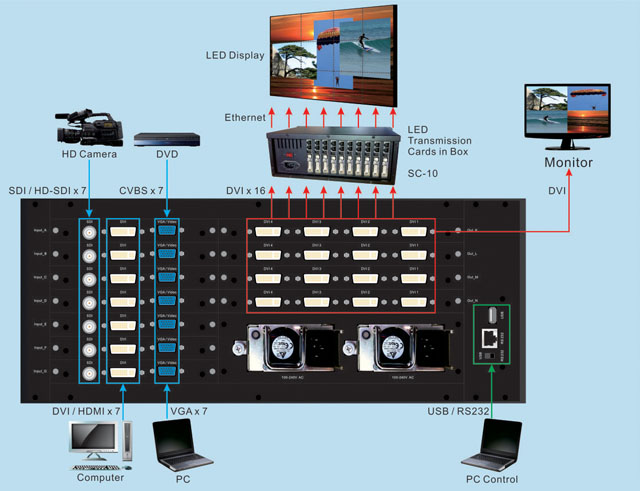

LVP86XX wiring diagram

Product certification
