1. 10 + Bit Faroudja ® DCDI to interlaced video processing
2. A new generation of Faroudja ® Real Color ® true Color image processing
3. Faroudja®TureLife™Video image enhancement
4. Advanced 4 x4 pixels matrix interpolation zooming algorithm
5. HDMI 1.3 a (HDCP) digital high-definition 1080 p input
6. SDI/hd-sdi / 3 g - SDI (1080 p) input
7. Ten bits of digital image processing
8. Multiple sets of input signalSeamless switching¡¢Fades to switch¡¢Fusion switch
9. Hd subtitles overlay function
Four 10.Custom double-picture (PIP/POP) model, a variety of display effect is a key switch
11. The input signalHot backupFunction and ensure the display is more stable and reliable
12.Screen freezes function£¨Freeze £©
13. AIAO (Any) In Any Out function, Any interception of Any output
14. Standalone maximum output resolution2304 x 1152 or 2304 x 816To meet the double cascade with largest send CARDS
15.DVI output Loop (DVI Loop ), multimachine parallel synchronization, drive the infinite lattice LED screen
16. Convenient panel button operation,Fast knob adjust the Settings, the perfect RS232 serial port protocol support all controls and Settings
17. The front panel knobs, buttons switch directly 10 road input signal source, including:
3×CVBS 1×DVI 1×HDMI
2×VGA 1×YPbPr / YCbCr 1×S-Video
1 x EXT (extension module, optional for VIDEO or SDI/hd-sdi / 3 g - SDI or VGA/DVI/HDMI)
18. Two-way stereo audio converter is configurable, plus the DVI (only input the HDMI signal), HDMI and SDI audio, a total of 5 way switch audio synchronization
19. Can be built-in 2 LED to send card (send card for options, the processor itself does not contain sending CARDS)
20. 24/7 application, high reliability, high stability
21.Compatible with all of full-color synchronous control system on the market

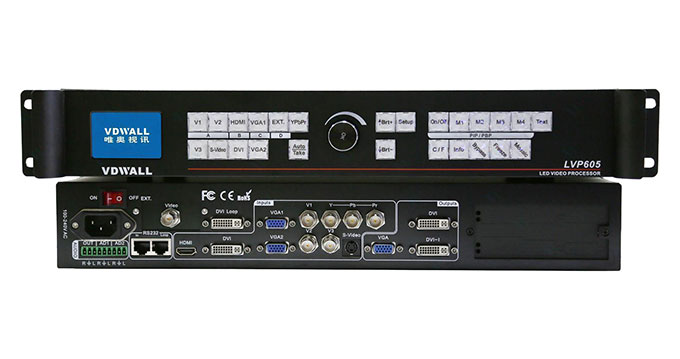

LVP605 series models
Type no. |
Extension module |
LVP605 |
Video |
LVP605S |
SDI / HD-SDI / 3G-SDI |
LVP605D |
VGA / DVI / HDMI
|

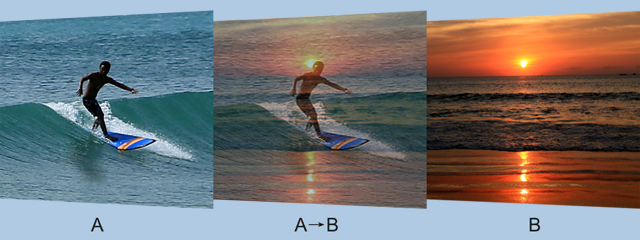

Characteristic one: the fading

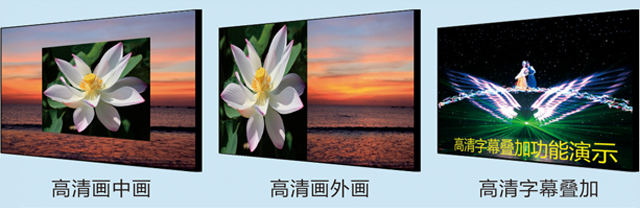

Characteristics of the two: picture in picture, painting outside, subtitle overlay

System application
Especially suitable forLease show, display exhibition center, stage, TV studio theatre, conference and other large LED display applications.

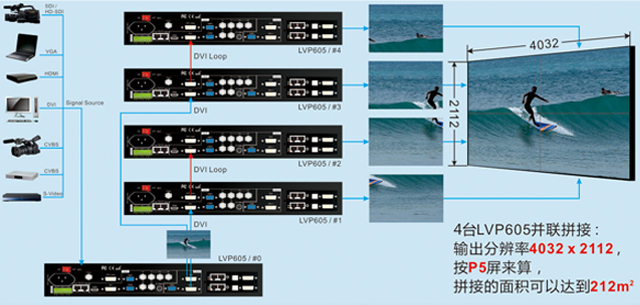

Synchronous splicing example: multimachine cascade

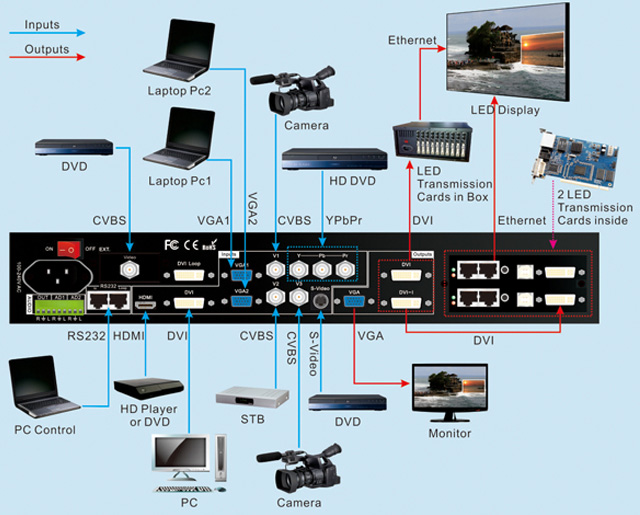

LVP605 wiring diagram

Technical specifications
The input signal |
3×Video
1×S-Video
1×YPbPr
2×VGA£¨RGBHV£©
1×DVI£¨VESA£© |
Video formats |
1V£¨p_p£©/ 75 omega. |
S-VideoAmplitude of the impedance |
Y£º1.0V£¨p_p£©/ 75 omega.£¬C£º0.35V£¨p_p£©/ 75 omega. |
VGAformat |
Or less2048x1152 _60Hz |
VGAAmplitude of the impedance |
PC£¨VESA£©
£¨HDCP£© |
Or less2304x1152_60Hz |
HDMI1.3£¨CEA -861£© |
SD/HD£¨CEA -861£©_60Hz |
YPbPrAmplitude of the impedance |
2.0Vp-p/10K? |
The input terminals |
type/The number of
2×DVI |
VGA/DVIThe resolution of the1920×1080p_50Hz/60Hz
1366×768_60Hz
1440×900_60Hz
2048×1152_60Hz
2560×816_60Hz
2304×1152_60Hz
1920×1200_60 Hz
1200×1600_60 Hz
1080×1920_60 Hz
1536×1536_60 Hz
Custom output resolution (highest level pixels3840, the vertical pixels to the highest1920£© |
R¡¢G¡¢B = 0.7 V£¨p_p£©/ 75 omega. |
The output terminals |
control |
The input voltage |
Or less20W |
The environment temperature5-40 ¡æ |
15-85% |
Size (packaging) |
The weight of the<span "="" style="margin: 0px; padding: 0px; list-style-type: none; font-size: 12pt;"> |
Gross weight:5.0Kg, Net weight:3.2Kg |
Product certification
