1, 10 + Bit Faroudja ® DCDI to interlaced video processing

2, a new generation of Faroudja ® Real Color ® true Color image processing

3, Faroudja ® TureLife ™ video image enhancement

4, seamless switch, fades, and fusion

5, frame synchronization technology, no dislocation and latency between output image

6, any position picture in picture or painting outside painting (PIP/PBP) display

7, custom double-picture invocation pattern, pattern between a key switch

8, custom DVI input EDID, perfect to realize point-to-point display

9, custom output resolution, single pixel level up to 3840, vertical pixels of up to 1920

Stereo audio converter is configurable, 10, 2 road with HDMI and SDI audio audio, a total of 4 road synchronous switch

11, 2 LED to send card can be built

12, 24/7 application, high reliability and stability

13,Compatible with all of full-color synchronous control system on the market

Features a: seamless switching, multiple sets of input signal fading switch time can choose, fusion switch

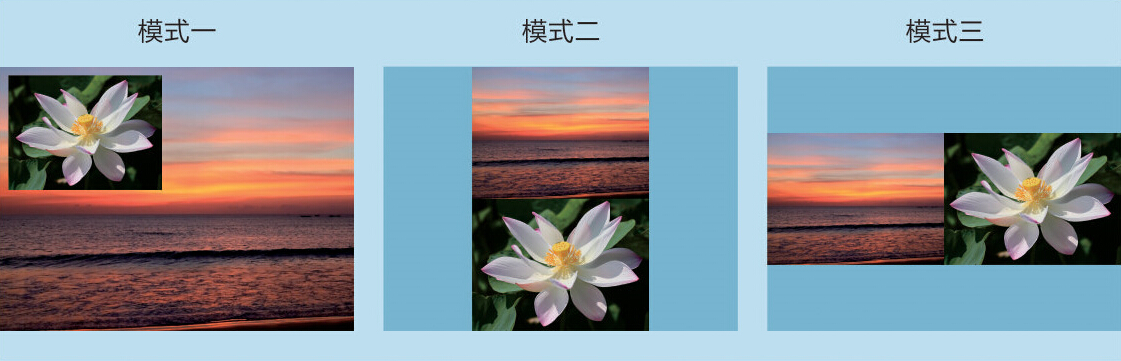

Character 2:3 sets of custom double-picture (PIP/PBP) display mode

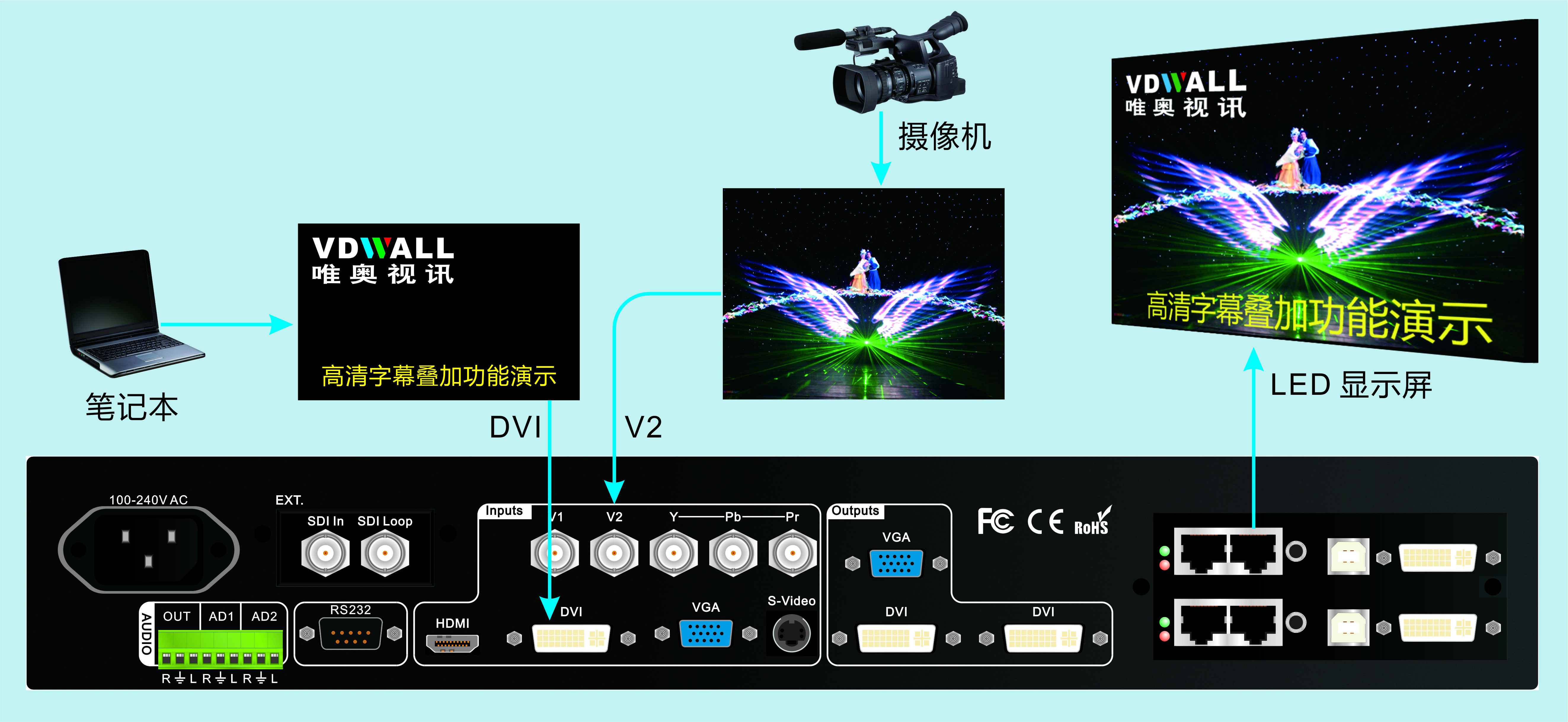

Characteristics of the three: hd subtitles overlay

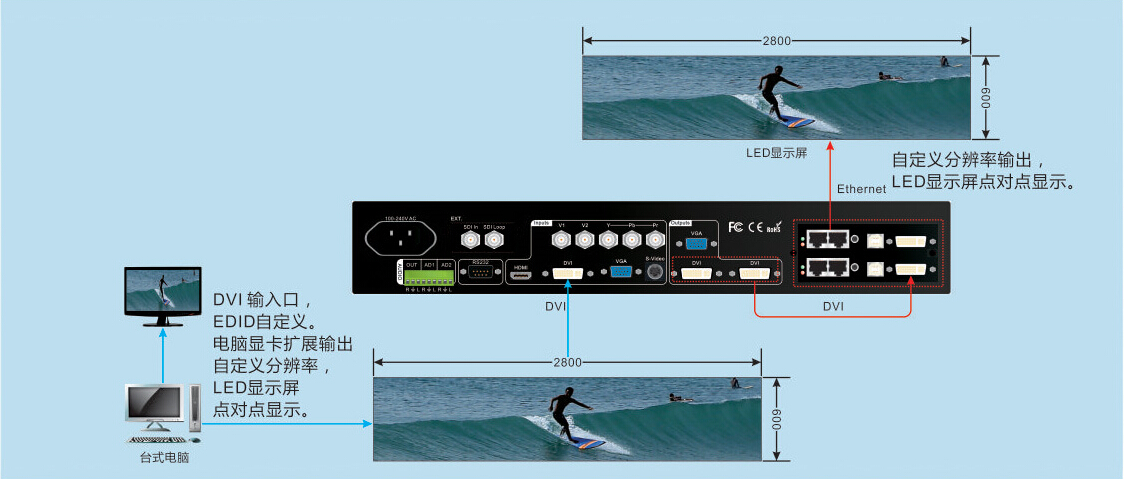

Characteristics of four: custom output resolution, custom DVI input EDID, perfect to realize point-to-point display

System application

Especially suitable for leasing performance, display exhibition center, stage, TV studio theatre, conference and other large LED display applications.

Low LVP505 wiring diagram:

Technical specifications
