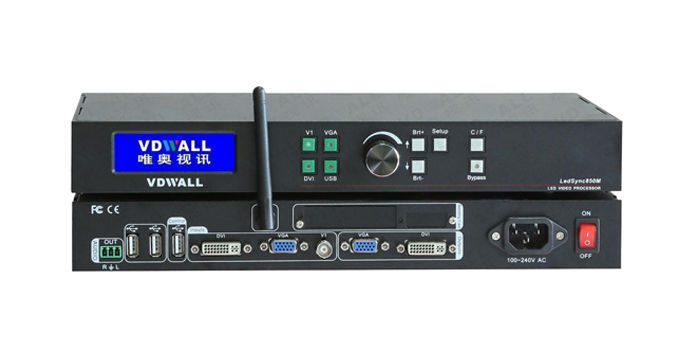

LedSync850M high-definition LED video processor

1. The latest generation of broadcast video processing technology, video images: the details more clearly, more rich layers, color more gorgeous, more vivid scene
2. 10 + Bit Faroudja ® DCDI to interlaced video processing
3. A new generation of Faroudja ® Real Color ® true Color image processing
4. The built-inHd media player、USB2.0、Support U disk video、Images broadcast
5. SupportWireless wi-fi Online real time video on demand function
6. DVI support HDMI 1.3 a (HDCP) A full digital high definition 1080 p The input
7. Three groups of input signal (Video, VGA, DVI/USB)Seamless switch, fades
Single 8.Maximum output resolution 1920 x 1080 @ 60 hz
9. A key switch 4 road input signal source: 1 x Video, 1 x 1 x VGA, DVI, USB 1 x
10. USB hd multimedia player stereo audio output
11. Convenient panel button operation, quick adjustment knob Settings, perfect setting manipulation and USB protocol
12. Built-in 1 LED to send card, compatible with different manufacturer to send card structure (send card for options, the processor itself does not contain sending CARDS)
13. 24/7 application, high reliability, high stability
14.Compatible with all of full-color synchronous control system on the market

Characteristic one: U disk, wireless wi-fi

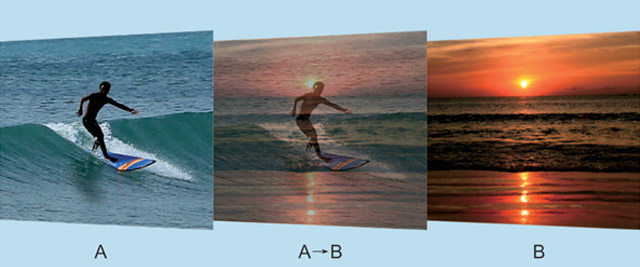

Feature 2: the fading

System application
Exhibition, small engineering application, performance, small lease center TV studio, stage performances, such as high-end conference LED screen display.

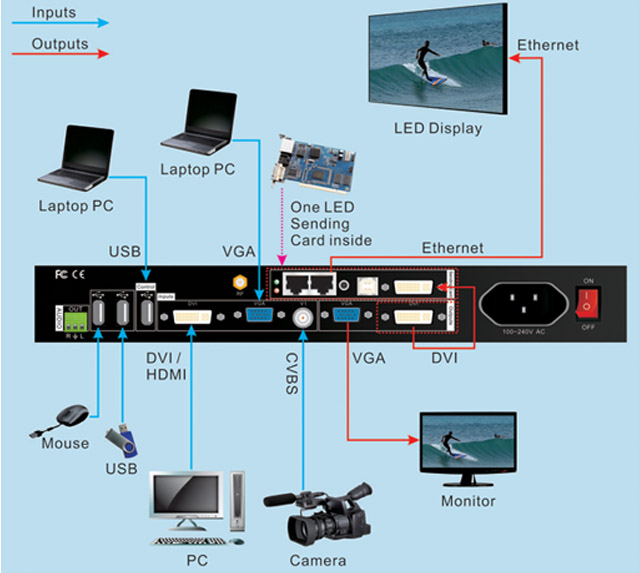

LedSync850M wiring diagram

Technical specifications

The input signal
type/The number of	1×Video 1×VGA（RGBHV） 1×DVI（HDMI1.3） 1×USB2.0
Video formats	PAL/NTSC
Composite video by impedance	1V（p_p）/ 75 omega.
VGAformat	PC（VESA）	Or less1920x1080_60Hz
VGAAmplitude of the impedance	R、G、B = 0.7 V（p_p）/ 75 omega.
DVI format	PC（VESAStandard)	Or less1920x1080_60Hz
	HDMI1.3（CEA-861）
USB2.0	multimediaVideo file format	mkv、ts、avi、wmv、rmvb、mpeg、mpg、mp4、vob、mov、asf
	Multimedia video coding format	H.264(AVC HD)、VC-1(WMV HD)、MPEG-2 HD、MPEG-1、MPEG-4、Xvid
	Image format	JPG、PNG、BMP,The biggest pixel1500wan
The input terminals	Video：BNC VGA：15pin D_Sub(The female) DVI：24+1 DVI_D USB: Atype
The output signal
type/The number of	1×VGA（RGBHV） 1×DVI
VGA/DVIThe resolution of the	1024×768_60Hz/75Hz 1280×1024_60Hz/75Hz 1366×768_60Hz 1440×900_60Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz
VGAThe output amplitude	R、G、B = 0.7 V（p_p）/ 75 omega.
Audio output	2.0Vp-p/10K<span style="font-size:14px;" "="">?
The output terminals	VGA OUT：15pin D_Sub(The female) DVI OUT：24+1 DVI_D
other
control	Panel key/PCPC software
The input voltage	100-240VAC 50/60Hz
The whole machine maximum power consumption	Or less20W
The environment temperature	0-45℃
Environmental humidity	15-85%
Size (packaging)	385（long）x 280mm（wide）x 120mm（high）
The weight of the	Gross weight2.8Kg The net weight1.7Kg

Product certification
