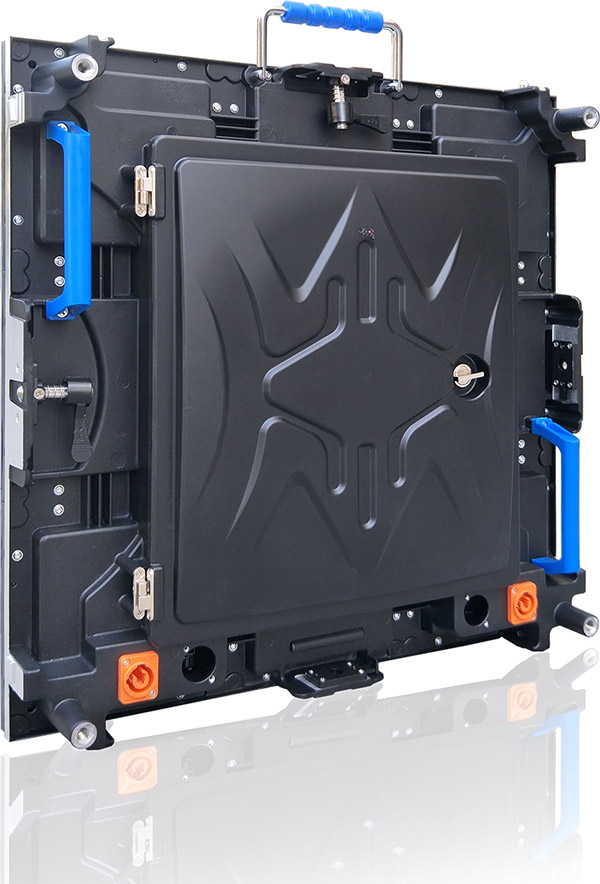

| P1.875-32 s main technical parameters of indoor LED display | ||||||||
| 1.875 ©L physical point spacing | Unit board size 240 x120 measures how ©L | Unit housing size 480 * 480 * 480 (mm) | ||||||
| Physical density of 284444 / ©O | Light color 1 r1g1b | Unit board resolution 128 * 64 = 8192 dots | ||||||
| Unit board weight - kg | ||||||||
| 256 x256 cabinet resolution | Housing area of 0.2304 m squared | Die-casting aluminum body weight 7.9 KG + 0.05 KG | ||||||
| The main technical parameters | ||||||||
| The best stadia 2 m to 30 m | Horizontal ¨R 160 ° optional visual Angle | Vertical 140 ° or optional | ||||||
| The average power consumption < 400 w / ©O | The maximum power consumption < 800 w / ©O | Control mode: synchronous control | ||||||
| Display card DVI graphics | 1/32 scanning drive way | In Ž ¨R 60 hz frequency | ||||||
| In the frame frequency ¨R 1920 hz | The white balance brightness ¨R 1000 CD / ©O | The refresh frequency ¨R 2880 hz | ||||||
| Brightness adjustment way | Driver IC: ICN2053 / MBI5153 | Adjustable level 16 | ||||||
| Software manual regulation: adjustable level 100, 100 | ||||||||
| Computer operating system | ||||||||
| WIN98¡¢WINXP¡¢WIN2000,etc | ||||||||
| The video signal | ||||||||
| The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc | ||||||||
| Control system | ||||||||
| PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional) | ||||||||
| MTBF ¨R 5000 hours | Life of 75000 ~ 100000 hours | Pixel control rate < 0.0002 | ||||||
| PH1.875 project classification | Triad packaging format |
1515 LED packaging way |
||||||
