| P1.667-30 s main technical parameters of indoor LED display | ||||||||

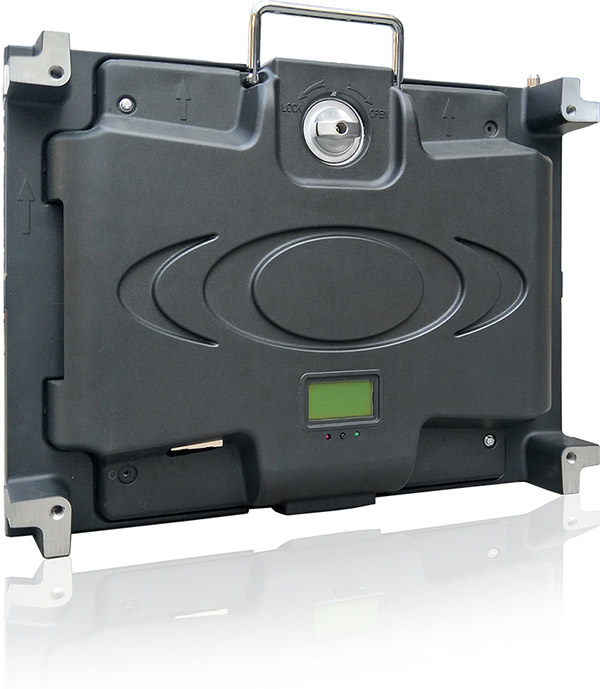

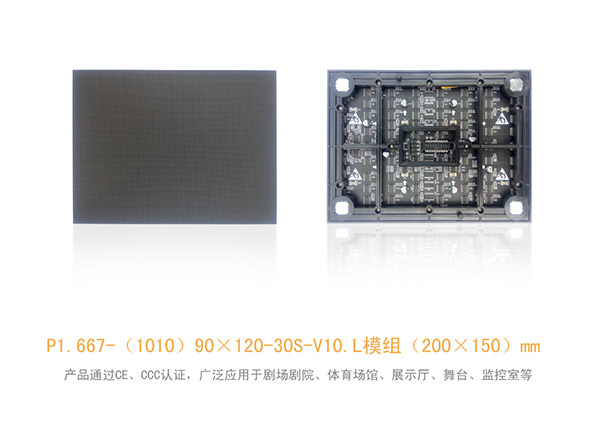

| Physical point distance (1.667 mm) | Unit 200 x150 plate size (mm) | Unit housing size 400 * 300 * 300 (mm) | ||||||
| Physical density of 360000 / ©O | Light color 1 r1g1b | Unit board resolution is 120 * 90 = 10800 (DOTS) | ||||||
| Unit board weight 0.27 kg | ||||||||
| Box 240 * 180 resolution | Housing area of 0.12 m squared | Die-casting aluminum body weight 5.2 KG + 0.05 KG | ||||||
| The main technical parameters | ||||||||
| The best stadia 1 m ~ 25 m | Horizontal ¨R 160 ° optional visual Angle | Vertical 140 ° or optional | ||||||
| The average power consumption < 500 w / ©O | The maximum power consumption < 1200 w / ©O | Control mode: synchronous control | ||||||
| Display card DVI graphics | 1/30 scanning drive way | The maximum power of 30 w or less | ||||||
| In the frame frequency ¨R 1920 hz | The white balance brightness ¨R 1000 CD / ©O | The refresh frequency ¨R 2880 hz | ||||||
| Brightness adjustment way | Driver IC: ICN2053 / MBI5153 | Adjustable level 16 | ||||||
| Software manual regulation: adjustable level 100, 100 | ||||||||
| Computer operating system | ||||||||
| WIN98¡¢WINXP¡¢WIN2000,etc | ||||||||
| The video signal | ||||||||
| The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc | ||||||||
| Control system | ||||||||
| PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional) | ||||||||
| MTBF ¨R 5000 hours | Life of 75000 ~ 100000 hours | Pixel control rate < 0.0002 | ||||||
| Project classification PH1.667-30 s | Triad packaging format | 1010 LED packaging way | ||||||
