Published Time£º2018.03.28¡¡view count£º

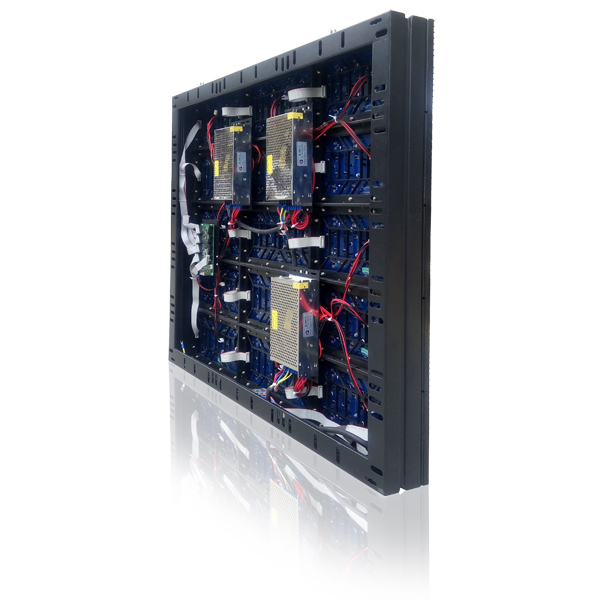

| P10-2 s outdoor LED display main technical parameters | ||||||||
| 10 ©L physical point spacing | Unit 320 x160 plate size ©L | Unit housing size 960 x 960 (©L) | ||||||
| Physical density of 10000 / ©O | Light color 1 r1g1b | Unit board resolution 32 * 16 = 512 DOTS | ||||||
| Unit board weight 0.43 kg | ||||||||
| Box 96 * 96 resolution | Housing area of 0.9216 m squared | 20 KG body weight + / - 0.05 KG | ||||||
| The main technical parameters | ||||||||
| The best stadia 8 m ~ 100 m | Horizontal ¨R 160 ° optional visual Angle | Vertical 160 ° or optional | ||||||
| The average power consumption < 800 w / ©O | The maximum power consumption < 1600 w / ©O | Control mode: synchronous control | ||||||
| Display card DVI graphics | 1/2 scanning drive mode | In Ž ¨R 60 hz frequency | ||||||
| The refresh frequency ¨R 300 hz | The white balance brightness ¨R 7500 CD / ©O | Working voltage (ac) | ||||||
| Brightness adjustment way | Brightness induction automatic adjustment | Adjustable level 16 | ||||||
| Software manual regulation: adjustable level 100, 100 | ||||||||
| Computer operating system | ||||||||
| WIN98¡¢WINXP¡¢WIN2000,etc | ||||||||
| The video signal | ||||||||
| The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc | ||||||||
| Control system | ||||||||
| PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional) | ||||||||
| MTBF ¨R 5000 hours | Life of 75000 ~ 100000 hours | Pixel control rate < 0.0002 | ||||||
| Project classification PH10-2 s | Triad packaging format | 3535 LED packaging way | ||||||
