P3.91 outdoor full-color displays

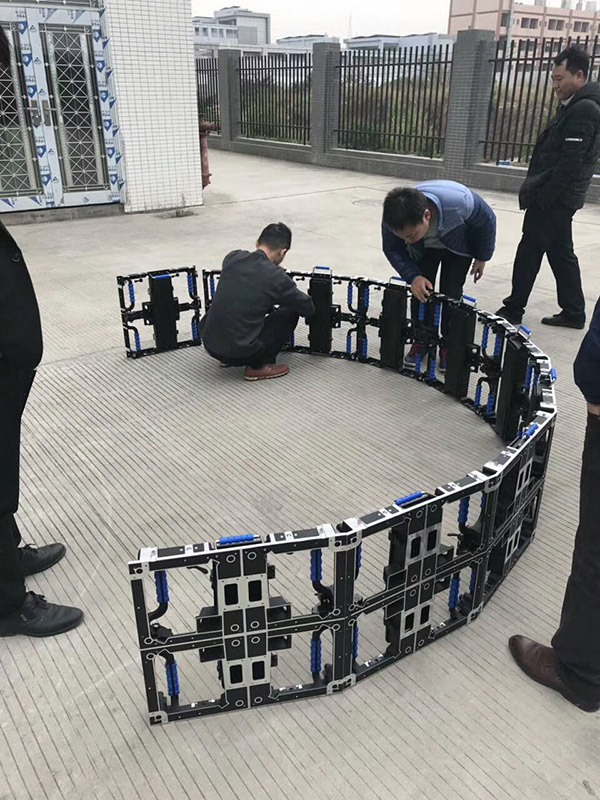

On the back of the figure


Splicing process

P3.91-16 s outdoor SLED displays the main technical parameters
3.906 ㎜ physical point spacing			Unit 250 x250 plate size ㎜			500 x 500 ㎜ unit body size
Physical density of 65536 / ㎡			Light color 1 r1g1b			Unit board resolution 64 * 64 = 4096 DOTS
0.23 ㎏ unit weight plate
Box 128 * 128 resolution			Housing area of 0.25 m squared			Die-casting aluminum body weight 7.3 KG + 0.05 KG
The main technical parameters
The best stadia 3 m to 40 m			Horizontal ≧ 160 ° optional visual Angle			Vertical 120 ° or optional
The average power consumption < 600 w / ㎡			The maximum power consumption < 1200 w / ㎡			Control mode: synchronous control
Display card DVI graphics			1/16 scanning drive way			In 幁 ≧ 60 hz frequency
The refresh frequency ≧ 1000 hz			The white balance brightness ≧ 3600 CD / ㎡			Working voltage (ac)
Brightness adjustment way			Brightness induction automatic adjustment			Adjustable level 16
Software manual regulation: adjustable level 100, 100
Computer operating system
WIN98、WINXP、WIN2000,etc
The video signal
The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc
Control system
PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional)
MTBF ≧ 5000 hours			Life of 75000 ~ 100000 hours			Pixel control rate < 0.0002
Project classification PH3.906-16 s			Triad packaging format			1921 LED packaging way
