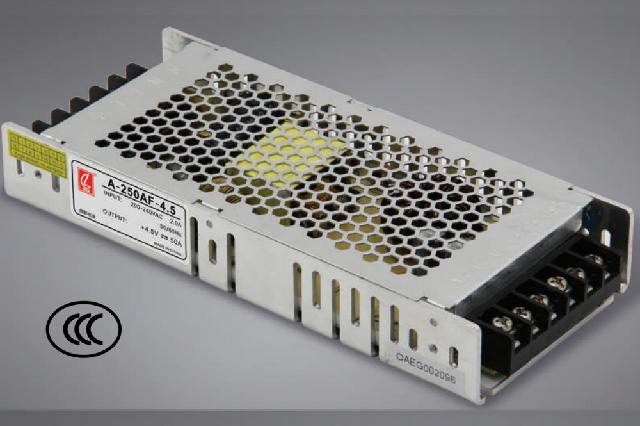

A - 250 af ultra-thin screen power supply series

Product features
	Thin thickness, can reduce the thickness and the weight of the display, high reliability, load ability
	Protection: overload/short circuit protection
	100% full load high temperature ageing
	2 years warranty
	Size: 190 x82x30mm

The input voltage/frequency of input	200~240VAC/47~63HZ
The surge current	Cold start, 40 a / 230 vac
Linear regulation	0.5% or less
Output overload protection	110% - 150% cut output, input after the restart
Rise, keep time	50 ms, 20 ms rated load
Dielectric strength	I/P-O/P：3KVAC, I/P-FG：1.5KVAC, O/P-FG:0.5KVAC,1min
Working temperature	- 30 ℃ ~ + 60 ℃
Storage temperature	- 40 ℃ ~ + 100 ℃, 20 ~ 95% RH without condensation
Safety standards	GB4943，UL60950-1，EN60950-1
EMC standard	GB9254，EN55022
Cooling way	Since the cold

The product name

The output voltage/current

Voltage regulation accuracy

Ripple noise

The efficiency of

A-250AF-3.3

3.3V.0~50A

Plus or minus 2%

150mV

p86%

A-250AF-3.8

3.8V.0~50A

Plus or minus 2%

150mV

p88%

A-250AF-4.2

4.2V.0~50A

Plus or minus 2%

150mV

p89%

A-250AF-4.5

4.5V.0~50A

Plus or minus 2%

150mV

p89%

A-250AF-5

5V.0~50A

Plus or minus 2%

150mV

p89%
