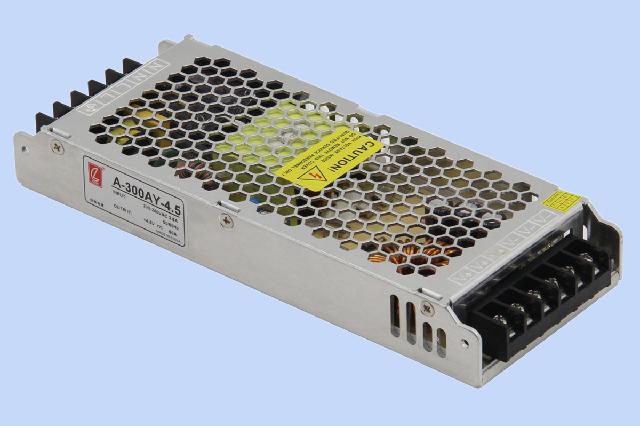

A - 300 ay ultra-thin screen power supply series

Product features thickness thin, can reduce the thickness and the weight of the display, high reliability, strong load protection function: 100% overload/short circuit protection with high temperature aging 2 years warranty size: 212 x81. 5 x31. 2 mm, 180 ~ 180 vac input voltage/frequency / 47 ~ 63 hz surge current cold start, linear adjusted rate of 0.5% or less of a / 230 vac output overload protection 110% 140% cut output, rising after the restart, hold time 50 ms, 20 ms loaded with dielectric strength rating I/P - O/P: 3 kvac

Product features
	Thin thickness, can reduce the thickness and the weight of the display, high reliability, load ability
	Protection: overload/short circuit protection
	100% full load high temperature ageing
	2 years warranty
	Size: 212 x81. 5 x31. 2 mm

The input voltage/frequency of input	180~264VAC/47~63HZ
The surge current	Cold start, 60 a / 230 vac
Linear regulation	0.5% or less
Output overload protection	110% - 140% cut output, input after the restart
Rise, keep time	50 ms, 20 ms rated load
Dielectric strength	I/P-O/P：3KVAC, I/P-FG：1.5KVAC, O/P-FG:0.5KVAC,1min
Working temperature	- 30 ℃ ~ + 60 ℃
Storage temperature	- 40 ℃ ~ + 100 ℃, 20 ~ 95% RH without condensation
Safety standards	GB4943，UL60950-1，EN60950-1
EMC standard	GB9254，EN55022
Cooling way	Since the cold

The product name

The output voltage/current

Voltage regulation accuracy

Ripple noise

The efficiency of

A-300AY-2.8

2.8V.0~60A

Plus or minus 1%

200mV

85% or higher

A-300AY-3.3

3.3V.0~60A

Plus or minus 1%

200mV

86% or higher

A-300AY-3.8

3.8V.0~60A

Plus or minus 1%

200mV

88% or higher

A-300AY-4.5

4.5V.0~60A

Plus or minus 1%

200mV

89% or higher

A-300AY-5

5V.0~60A

Plus or minus 1%

200mV

90% or higher
