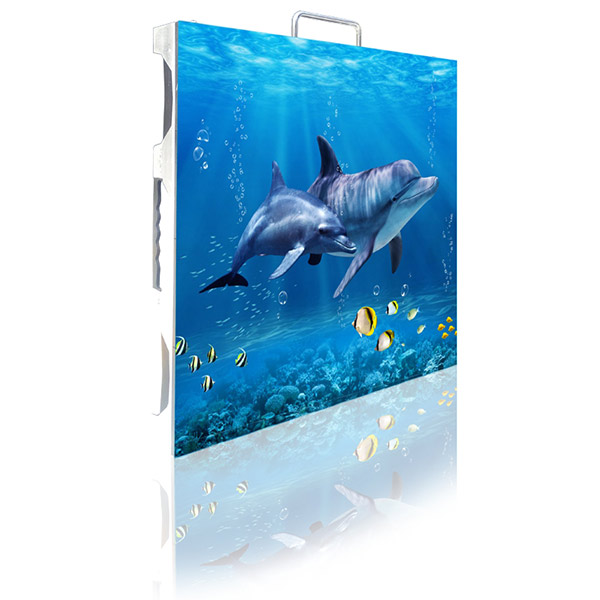

The P2 side reflection

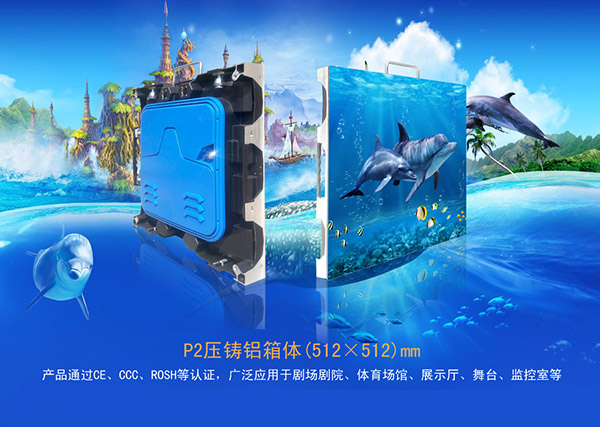

The P2 back side reflection

512 x512 back side reflection 1

The P2-32 s main technical parameters of indoor LED display
Physical spacing for 2 mm			Unit 128 x128 plate size (mm)			Unit housing size 512 x 512 x68 (mm)
Physical density of 250000 / ㎡			Light color 1 r1g1b			Unit board resolution 64 * 64 = 4096 DOTS
Unit board weight 0.14 kg
256 x256 cabinet resolution			Housing area of 0.262144 m squared			Die-casting aluminum weight 7.18 KG + 0.05 KG
The main technical parameters
The best stadia 2 m ~ 27 m			Horizontal ≧ 160 ° optional visual Angle			Vertical 120 ° or optional
The average power consumption < 500 w / ㎡			The maximum power consumption < 1000 w / ㎡			Control mode: synchronous control
Display card DVI graphics			1/32 scanning drive way			The maximum power of 20 w or less
In the frame frequency ≧ 1920 hz			The white balance brightness ≧ 1000 CD / ㎡			The refresh frequency ≧ 500 hz
Brightness adjustment way			Brightness induction automatic adjustment			Adjustable level 16
Software manual regulation: adjustable level 100, 100
Computer operating system
WIN98、WINXP、WIN2000,etc
The video signal
The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc
Control system
PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional)
MTBF ≧ 5000 hours			Life of 75000 ~ 100000 hours			Pixel control rate < 0.0002
Project classification PH2-32 s			Triad packaging format			1515 LED packaging way
