P8-4 s outdoor full-color LED display screen

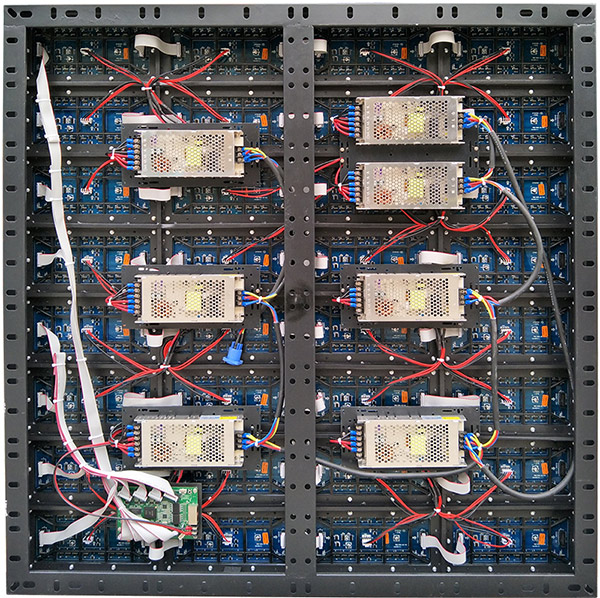

On the back of the P8 outdoor full-color simple box 1024 x1024

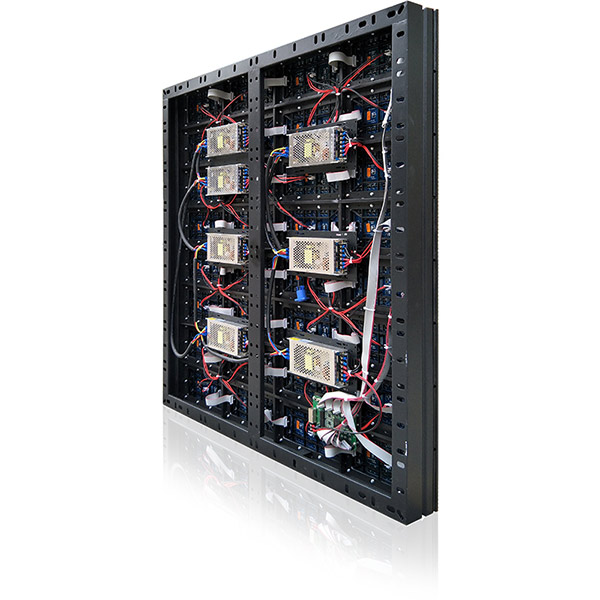

P8 outdoor full-color simple side 1024 x1024 box

P8 outdoor full-color simple box 1024 x1024 positive

P8 outdoor full-color easy is on the back

P8-4 s outdoor LED display main technical parameters
The physical distance between 8 ㎜	Unit 256 x128 plate size ㎜	1024 * 1024 * 98.45 ㎜ unit body size
Physical density of 15625 / ㎡	Light color 1 r1g1b	Unit board resolution 32 * 16 = 512 dots
0.31 ㎏ unit weight plate
Box 128 * 128 resolution	Housing area of 1.04857 m squared	Iron box body weight 24.67 KG + 0.05 KG
The main technical parameters
The best stadia 8 m ~ 80 m	Horizontal ≧ 160 ° optional visual Angle	Vertical 160 ° or optional
The average power consumption < 600 w / ㎡	The maximum power consumption < 1200 w / ㎡	Control mode: synchronous control
Display card DVI graphics	Drive way 1/4 scan	In 幁 ≧ 60 hz frequency
The refresh frequency ≧ 300 hz	The white balance brightness ≧ 6300 CD / ㎡	Working voltage (ac)
Brightness adjustment way	Brightness induction automatic adjustment	Adjustable level 16
Software manual regulation: adjustable level 100, 100
Computer operating system
WIN98、WINXP、WIN2000,etc
The video signal
The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc
Control system
PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional)
MTBF ≧ 5000 hours	Life of 75000 ~ 100000 hours	Pixel control rate < 0.0002
Project classification PH8-4 s	Triad packaging format	3535 LED packaging way
