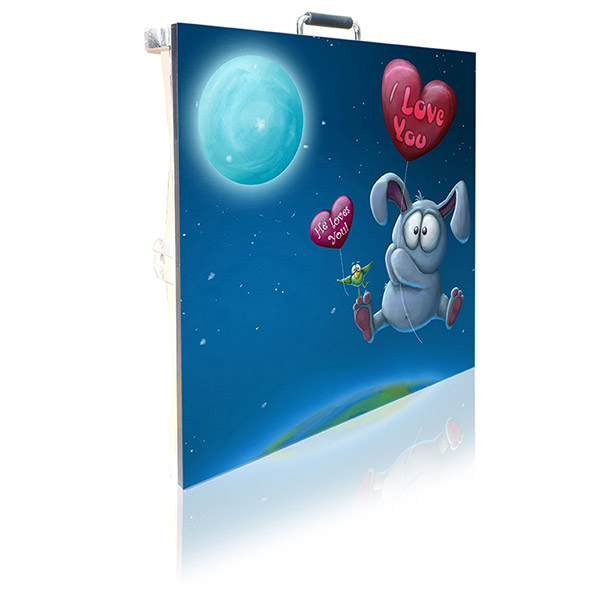

| P4.81-13 sled displays the main technical parameters | ||||||||
| 4.81 ©L physical point spacing | Unit 250 x250 board size (mm) | Unit housing size 500 mm * 500 mm * 500 mm | ||||||
| Physical density of 43264 / ©O | Light color 1 r1g1b | Unit board resolution 52 * 52 = 2704 DOTS | ||||||
| 0.67 ©K unit weight plate | ||||||||
| Box 104 * 104 resolution | Housing area of 0.25 m squared | Die-casting aluminum body weight 6.1 KG + 0.05 KG | ||||||
| The main technical parameters | ||||||||
| The best stadia 4 m ~ 55 m | Horizontal ¨R 160 ° optional visual Angle | Vertical 160 ° or optional | ||||||
| The average power consumption < 400 w/box | The maximum power consumption < 800 w / ©O | Control mode: synchronous control | ||||||
| Display card DVI graphics | 1/13 scanning drive way | Maximum power 40 w or less | ||||||
| In the frame frequency ¨R 360 hz | The white balance brightness ¨R 800 CD / ©O | The refresh frequency ¨R 500 hz | ||||||
| Brightness adjustment way | Brightness induction automatic adjustment | Adjustable level 16 | ||||||
| Software manual regulation: adjustable level 100, 100 | ||||||||
| Computer operating system | ||||||||
| WIN98¡¢WINXP¡¢WIN2000,etc | ||||||||
| The video signal | ||||||||
| The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc | ||||||||
| Control system | ||||||||
| PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional) | ||||||||
| MTBF ¨R 5000 hours | Life of 75000 ~ 100000 hours | Pixel control rate < 0.0002 | ||||||
| Project classification PH4.81-13 s | Triad packaging format | 2121 LED packaging way | ||||||
