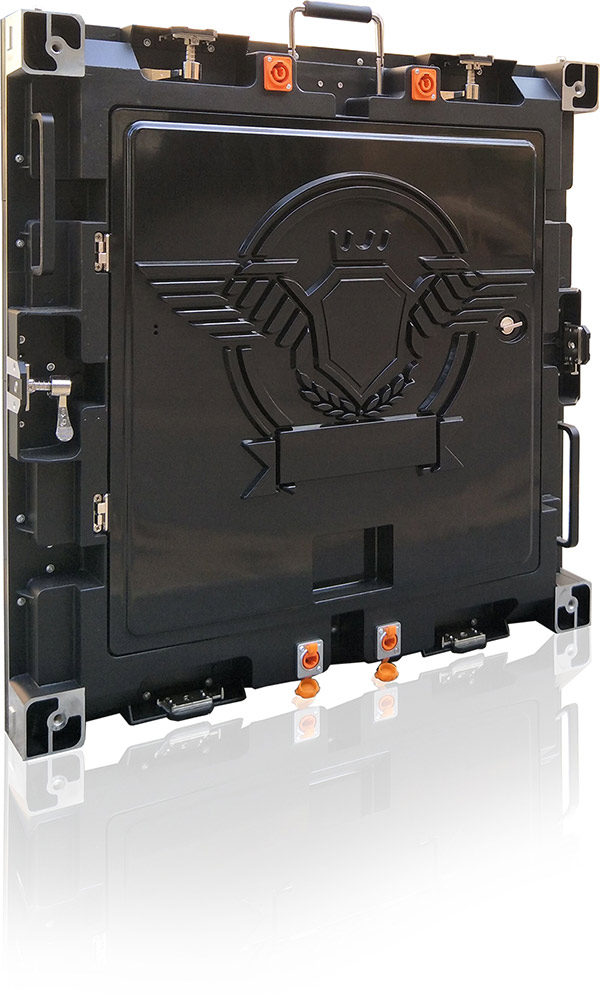

| P2.5-16 s main technical parameters of indoor LED display (aluminum) | ||||||||
| Physical point spacing of 2.5 mm | Unit 160 x160mm plate size | Unit housing size 640 x 640 x68 (mm) | ||||||
| Physical density of 160000 / ©O | Light color 1 r1g1b | Unit board resolution 64 * 64 = 4096 DOTS | ||||||
| Unit board weight 0.24 kg | ||||||||
| Box 256 * 256 resolution | Housing area of 0.4096 m squared | Die-casting aluminum weight 10.78 KG + 0.05 KG | ||||||
| The main technical parameters | ||||||||
| The best stadia 2 m to 30 m | Horizontal ¨R 160 ° optional visual Angle | Vertical 160 ° or optional | ||||||
| The average power consumption < 1000 w / ©O | The maximum power consumption < 2000 w / ©O | Control mode: synchronous control | ||||||
| Display card DVI graphics | 1/16 scanning drive way | Maximum power 18 w or less | ||||||
| In the frame frequency ¨R 1000 hz | The white balance brightness ¨R 2000 CD / ©O | The refresh frequency ¨R 500 hz | ||||||
| Brightness adjustment way | Brightness induction automatic adjustment | Adjustable level 16 | ||||||
| Software manual regulation: adjustable level 100, 100 | ||||||||
| Computer operating system | ||||||||
| WIN98¡¢WINXP¡¢WIN2000,etc | ||||||||
| The video signal | ||||||||
| The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc | ||||||||
| Control system | ||||||||
| PCTV card (optional optional) + DVI video card + master card + optical fiber transmission (optional optional) | ||||||||
| MTBF ¨R 5000 hours | Life of 75000 ~ 100000 hours | Pixel control rate < 0.0002 | ||||||
| Project classification PH2.5-16 s | Triad packaging format | 2121 LED packaging way | ||||||
