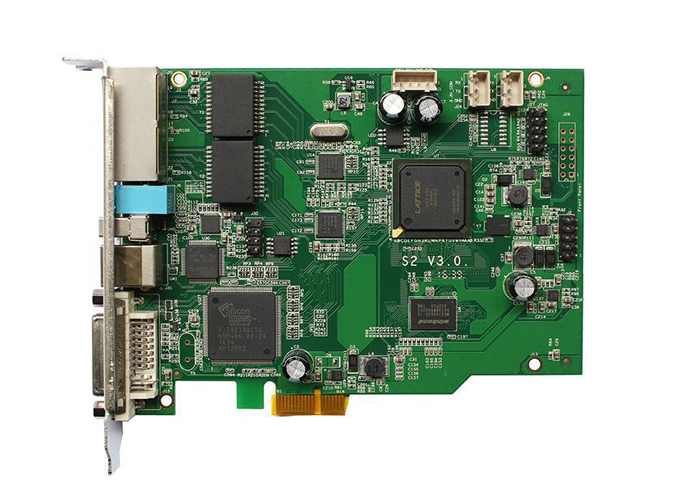

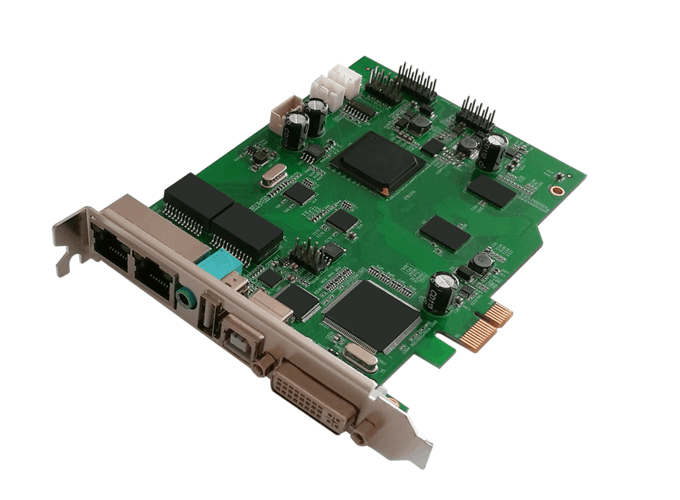

S2 card Wright send CARDS_SHENZHEN YUYI PHOTOELECTRON

features
Support, DVI video signal input;
Support audio input, through the cable synchronous transmission;
Input resolution: 1920 * 1200, biggest support any resolution Settings;
Maximum loading area, single card: 1.31 million points, the widest of up to 2560, or a maximum of 2560 points;
Two gigabit front-end ports output, supports the two up and down, left and right sides is arbitrarily splicing;
Double USB interface for data communication, convenient cascade, strict synchronization;
Support, low light and high ash;
The PCI - E 1 x interface, generality is stronger;
Support, DC from 12 v to 3.8 v super wide working voltage, stronger adaptability;
Wright · support card full range receive CARDS.
specification

Video source interface
The interface type	DVI
Receive the resolution	Maximum 1920 * 1920 points, support this resolution in any resolution
Video source frame rate	Standard 60 hz, and can automatically adapt to the frame rate

Gigabit front-end ports output
So the number of	Two gigabit so
So control area	Each front-end ports is 1280 * 512 (or equivalent) area, 2 so a total of 1280 * 1024 (or equivalent area Single card is most the breadth of up to 2560 points, or a maximum of 2560 points)
Transmission distance	Five kinds of cable 140 m or less;Six class cable 170 m or less;Optical fiber line unlimited
So joining together	2 so can do any stitching or up and down or so
Data transmission format	According to the gigabit network frame format and additional CRC check

Connected devices
Support receiving card	Card Wright all series to receive CARDS
Support peripherals	Multi-function card, fiber optic transceivers, gigabit switches

specification
The board size is	140 mm long, 105 mm wide
The input voltage	DC 3.8 V to 12 V voltage
The rated power	6W
The weight of the	100g

The man-machine interface
Interface configuration parameters	USB
Real-time adjusting parameters	support
Brightness color temperature adjustment	support
The intelligent detection system	Support the DVI video interface information detection
Real time clock	support

Auxiliary function
More screen Settings	Support to control the multiple display of different specifications
background	Support (extension mode)
Audio transmission	support
Network detection bit error rate	Detection of screen body, receiving card cable between quality and fault diagnosis
