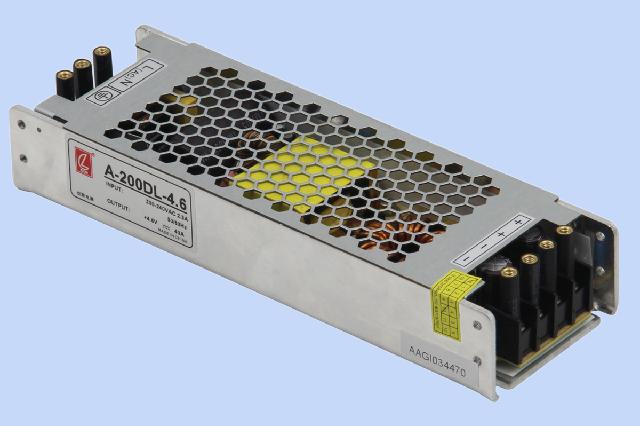

A - 200 dl series narrow A ultra-thin screen power supply

Product features Thin thickness, can reduce the thickness and the weight of the display, high reliability, load ability Protection function: 100% overload/short circuit protection with high temperature aging 2 years warranty size: 180 x59x34mm input voltage/frequency of 180 ~ 264 vac / 47 ~ 63 hz surge current cold start, 40 a / 230 vac linear output adjusted rate of 0.5% or less overload protection 110% 150% cut output, rising after the restart, hold time 50 ms, 20 ms loaded with dielectric strength rating I/P - O/P: 3 kvac,

Product features
	Thin thickness, can reduce the thickness and the weight of the display, high reliability, load ability
	Protection: overload/short circuit protection
	100% full load high temperature ageing
	2 years warranty
	Size: 180 x59x34mm

The input voltage/frequency of input	180~264VAC/47~63HZ
The surge current	Cold start, 40 a / 230 vac
Linear regulation	0.5% or less
Output overload protection	110% - 150% cut output, input after the restart
Rise, keep time	50 ms, 20 ms rated load
Dielectric strength	I/P-O/P：3KVAC, I/P-FG：1.5KVAC, O/P-FG:0.5KVAC,1min
Working temperature	- 30 ℃ ~ + 60 ℃
Storage temperature	- 40 ℃ ~ + 100 ℃, 20 ~ 95% RH without condensation
Safety standards	GB4943，UL60950-1，EN60950-1
EMC standard	GB9254，EN55022，classA
Cooling way	Since the cold

The product name

The output voltage/current

Voltage regulation accuracy

Ripple noise

The efficiency of

A-200DL-4.6

4.6V.0~40A

Plus or minus 2%

150mV

p89%

A-200DL-5

5V.0~40A

Plus or minus 2%

150mV

p90%
