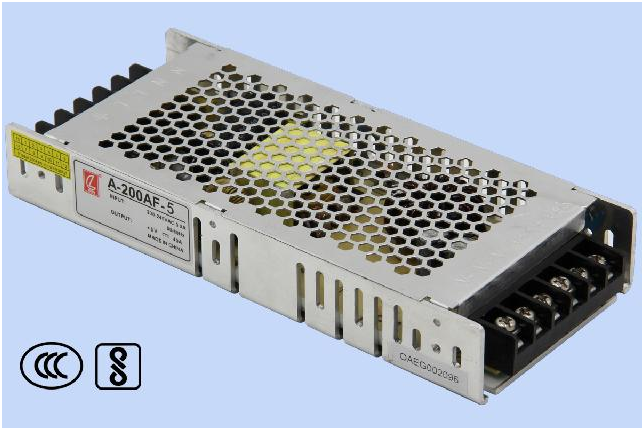

A - 200 series of af with three ultra-thin screen power supp

Published Time£º2018.04.27¡¡view count£º



Product features Thickness thin, can reduce the thickness and the weight of the display, high reliability, high load ability is strong, with three proofing process protection function: 100% overload/short circuit protection with high temperature aging 2 years warranty size: 190 x82x30mm input voltage/frequency of 176 ~ 264 vac / 47 ~ 63 hz surge current cold start, 40 a / 230 vac linear output adjusted rate of 0.5% or less overload protection 110% 150% cut output, rising after the restart, hold time 50 ms, 20 ms loaded with dielectric strength rating I/P - O/P: 3 kv


Product features


Thickness of thin, can reduce the thickness and the weight of the display, high reliability, load capability is strong, with three proofing process

  Protection: overload/short circuit protection
  100% full load high temperature ageing
  2 years warranty
  Size: 190 x82x30mm

The input voltage/frequency of input 176~264VAC/47~63HZ
The surge current Cold start, 40 a / 230 vac
Linear regulation 0.5% or less
Output overload protection 110% - 150% cut output, input after the restart
Rise, keep time 50 ms, 20 ms rated load
Dielectric strength I/P-O/P£º3KVAC, I/P-FG£º1.5KVAC, O/P-FG:0.5KVAC,1min
Working temperature - 30 ¡æ ~ + 60 ¡æ
Storage temperature - 40 ¡æ ~ + 100 ¡æ, 20 ~ 95% RH without condensation
Safety standards GB4943£¬UL60950-1£¬EN60950-1
EMC standard GB9254£¬EN55022
Cooling way Since the cold

The product name The output voltage/current Voltage regulation accuracy Ripple noise The efficiency of
A-200AF-2.8 2.8V.0~40A Plus or minus 2% 150mV p83%
A-200AF-3.3 3.3V.0~40A Plus or minus 2% 150mV p85%
A-200AF-3.8 3.8V.0~40A Plus or minus 2% 150mV p86%
A-200AF-4.2 4.2V.0~40A Plus or minus 2% 150mV p87%
A-200AF-4.5 4.5V.0~40A Plus or minus 2% 150mV p87%
A-200AF-5 5V.0~40A Plus or minus 2% 150mV p88%
